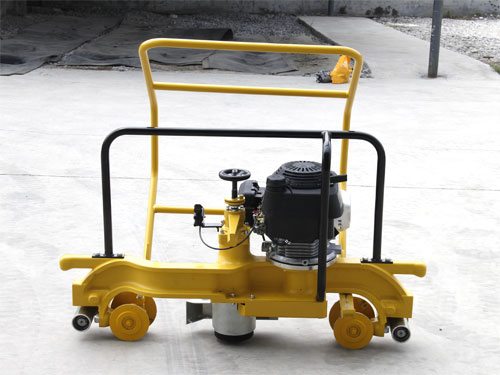

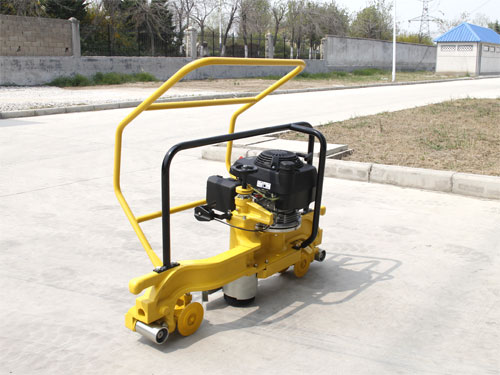

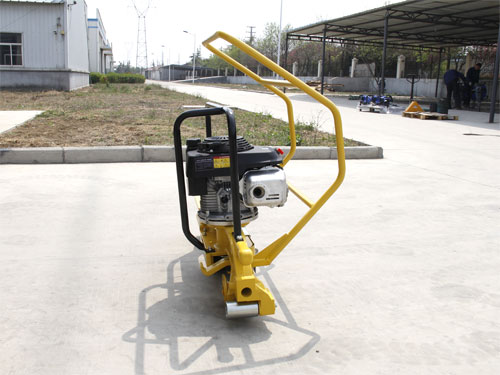

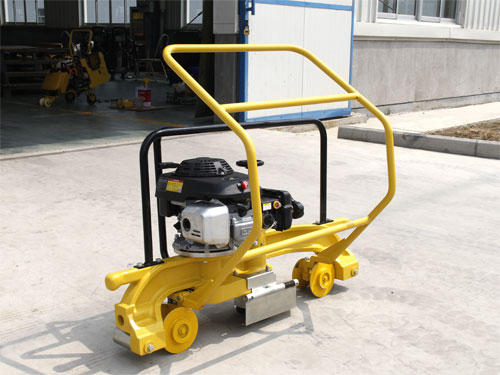

產品名稱:NGM-4.5磨軌機

該機器主要是專于精確打磨軌頭,以及用于打磨鋼軌鋁熱無縫焊接或加強焊接以及鋼軌磨損所產生的毛刺,修整軌頭輪廓,達到標準要求。機體采用高強度鋁合金架,裝有偏向防滑導輪,可打磨軌頭的兩側面及頂面,是鐵路工務進行軌頭打磨的專用設備,填補目前打磨機領域的空白。

Mainly for precisely grinding the rail headand grinding the burr generated from the rail aluminum hot seamless welding orreinforcing welding and the rail wearing , trimming the rail head contour tomeet the standard requirements. High-strength aluminum alloy frame equippedwith anti-skid guide wheel, which can polish the two sides and top surfaces ofthe rail head. A special equipment for rail track head grinding in RailwayEngineering, it fills the gap in the field of grinder at present.

產品特點:Product characteristics:

1、操作輕便適合各種鐵路鋼軌頭外輪廓上平面,側面及過渡圓弧的打磨作業。

Easy operation and applicable for grindingthe upper plane, side and transition arc of the outer contour of various railheads.

2、適合磨削鋼軌焊接縫的行車面。

Applicable for grinding the driving surfaceof rail welding seam.

3、具有仿形磨削功能,可使鋼軌焊接縫經磨削后得到平順的表面。

Profiling grinding function, make the railwelding seam get a smooth surface after grinding.

4、打磨機兩端接上加長裝置后,可用來打磨軌面的波浪磨耗。

Connected with an extension device, it canbe used to polish the wave abrasion of the rail surface.

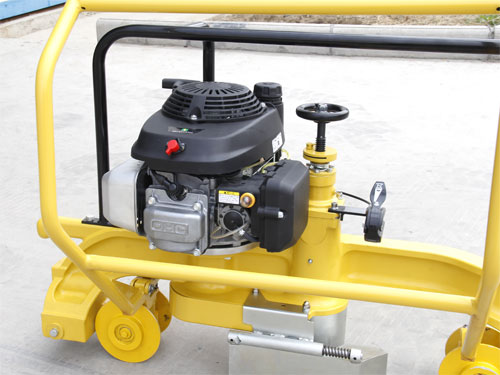

5、調整進給手輪,可精確的任意設定磨削深度。

Adjusting the feed handwheel to set thegrinding depth accurately and arbitrarily.

6、發動機針對打磨作業特殊性,專利設計研發潤滑系統,可方持久傾斜90度,以適應軌頭側面的打磨。

Designed and developed with a patentedlubrication system, able to be tilted for 90 degrees longer to adapt to thegrinding of the side of the rail head.

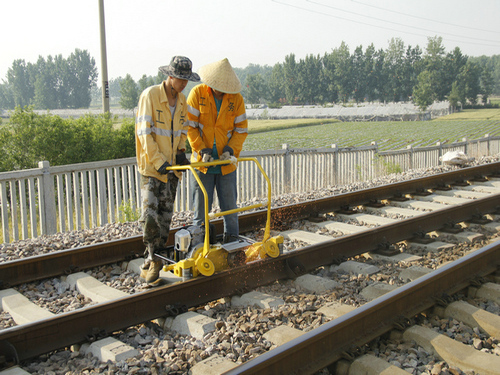

7、配備兩個支撐滾輪和兩個導輪,一個人就可以輕松使打磨機能夠在鋼軌上移動和作業,輕便、快捷。

Equipped with two supporting rollers andguide wheels, one person can easily make the grinder move and work on the rail,light and fast.

8、機器采用電噴發動機,噴油量自動調節,化油器不用調整,機器的啟動和使用不受海拔高度、環境溫度的影響。

Equipped with electronic injection engine,automatically adjust the fuel injection quantity, no need to adjust thecarburetor, the start-up and usage are not affected by the altitude and theambient temperature.

產品名稱

NGM-4.5磨軌機

發動機

發動機型號

1P73F

發動機型式

單缸、風冷、四沖程

排 量   ml

190cc

最大輸出功率kW /r/min

5.1/4000

油  耗g/kW·h

≤480

機器重量(凈重)     kg

 75

砂輪規格

125*55*65

砂輪轉速

4400 rpm

仿形輪距

1m

升降高度

70mm

行走方式

手推式

打磨位置調節方式

手輪螺旋調節

噪聲值

≦100

外形尺寸

1150 x 570 x 1000mm

包裝

1236x660x1050mm
