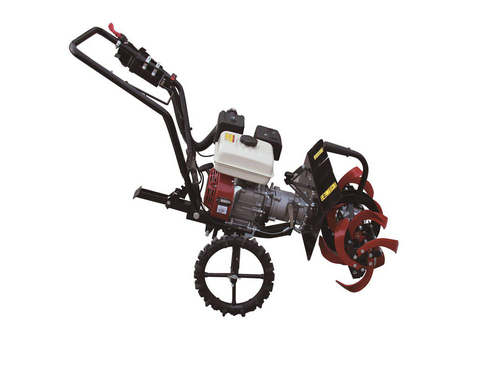

型號名稱Model | 1WG4.0-60型微耕機Mini cultivator 1WG4.0-60 |
結構型式 Structural type | 前置式 Front tine |
配套發動機型號名稱 Mating engine type | 170F型汽油機 gasoline engine 170F |
配套發動機生產企業 Engine Producer | 山東華盛中天機械集團股份有限公司Shandong Huasheng Zhongtian Engineering Machinery Co.,Ltd |
配套發動機標定功率kW Rated power | 4.0 |
配套發動機標定轉速r/min rated speed | 3600 |
配套發動機起動方式 Starting method | 手拉啟動Manual |
配套發動機燃油種類 fuel type | 汽油 gasoline |
整機外型尺寸（長×寬×高）mm Dimension(length×width×height) | 1460×670×830 |
作業速度m/s operating speed | 0.05—0.1 |
扶把振動m/s2 Vibration of the handlebar | ＜12 |
作業小時生產率hm2/h Operating productivity | ≥0.02 |
單位作業面積燃油消耗kg/hm2 Fuel Consumption of the unit operating area | ≤35 |
工作幅寬mm working width | 600 |
發動機輸出傳動方式 driving mode | 齒輪傳動 Gear driven |
扶把調整幅度（水平方向）adjustment range of the handlebar (horizontal direction) | 0° |
扶把調整幅度（垂直方向）adjustment range of the handlebar (vertical direction) | 30° |
刀輥設計轉速r/min Designed speed of the knife roll | 208 |
刀輥最大回轉半徑mm Max turning radius of the knife roll | 165 |
刀輥總安裝刀數 Total number of knives on the knife roll | 18 |
旋耕刀型號Rotary blade type | RT165 |
主離合器型式 main clutch type | 油浸式摩擦片oil-immerse friction plate |
主離合器狀態main clutch status | 常開normally open |
1、行走箱全新設計，采用高強度球墨鑄鐵，全齒輪傳動，使用壽命長，漏耕少。
New designed high strength ductile iron walkingbox , full gear transmission, long durability and less leakage tillage.
2、無檔位操作，常開式離合，松手即停，安全性高。
No gear operation, normally open clutch,stop immediately after release, with higher safety.
3、扶手架采用腳踏板式，調整高度自由、方便快捷。
Foot pedal type handlebar, free to adjustthe height, fast and convenient.
4、可調式擋泥板，可自由調整耕作模式，確保作業安全。
Adjustable fender, free to adjust thefarming mode and ensure safe operation.
5、支撐輪采用兩級人性化設計，靠前作業省力，靠后轉移輕松。
Two-level humanized supporting wheel, easyto work in the front and move back.
6、行走輪可拆卸，根據不同地況使用不同行走輪，高效快捷。
Applicable to different ground conditions,with disassembled walking wheels, efficient and fast.
7、采用170F四沖程汽油機，動力澎湃，效率高。
170F four stroke gasoline engine, powerfuland efficient.
