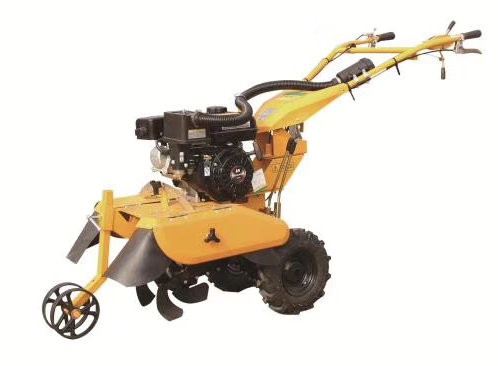

型號名稱Model | 3TGQ-4型微耕機 Mini cultivator |
配套動力Mating engine | 170FA |
型式type | 單缸、風冷、四沖程 Single-cylinder/ air-cooling/ four stroke |
排量ml Displacement | 208 |
標定功率kW rated power | 4.5kw/3600r/min |
啟動方式 starting method | 反沖式手拉啟動Recoil start |
油箱容積L Fuel tank capacity | 3.6 |
燃油標號 fuel type | 92#以上汽油gasoline 92# and above grade |
機油型號oil type | CD級或SAE10W-30、15W-40 Level CD or SAE10W-30、15W-40 |
主離合方式main clutch type | 皮帶漲緊式 belt tention type |
連接方式connection type | 銷軸直連Pin shaft directly connected |
傳動方式driving type | （皮帶/齒輪）復合傳動 (belt/gear) compound drive |
旋耕后地表平整度 cmSurface flatness after rotary tillage | ≤60 |
碎土率 soil broken rate | ≥50% |
凈重Kg Net weight | 92 |
1、采用齒輪傳動，四驅行走。
Gear transmission, four-wheel drive.
2、操作把手可360°旋轉，操作靈活方便。
360° rotatable handlebar, flexible andconvenient to operate.
3、采用多級過濾，拆裝方便，防塵效果好。
Multistage filter, easy to disassemble andinstall with good dust proof effect.
4、具有微耕、開溝功能，工作效率高。
Micro- tillage, ditching function, high efficiency.
